Historic Atlanta Federal Building Posed Architectural, Structural, and Blast Protection Challenges

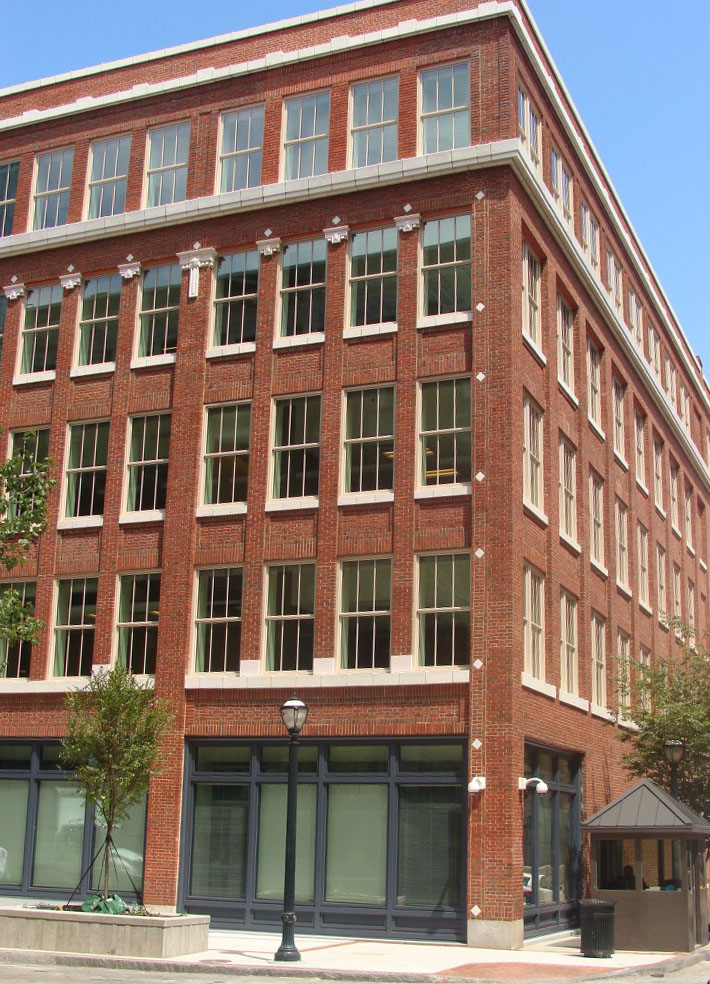

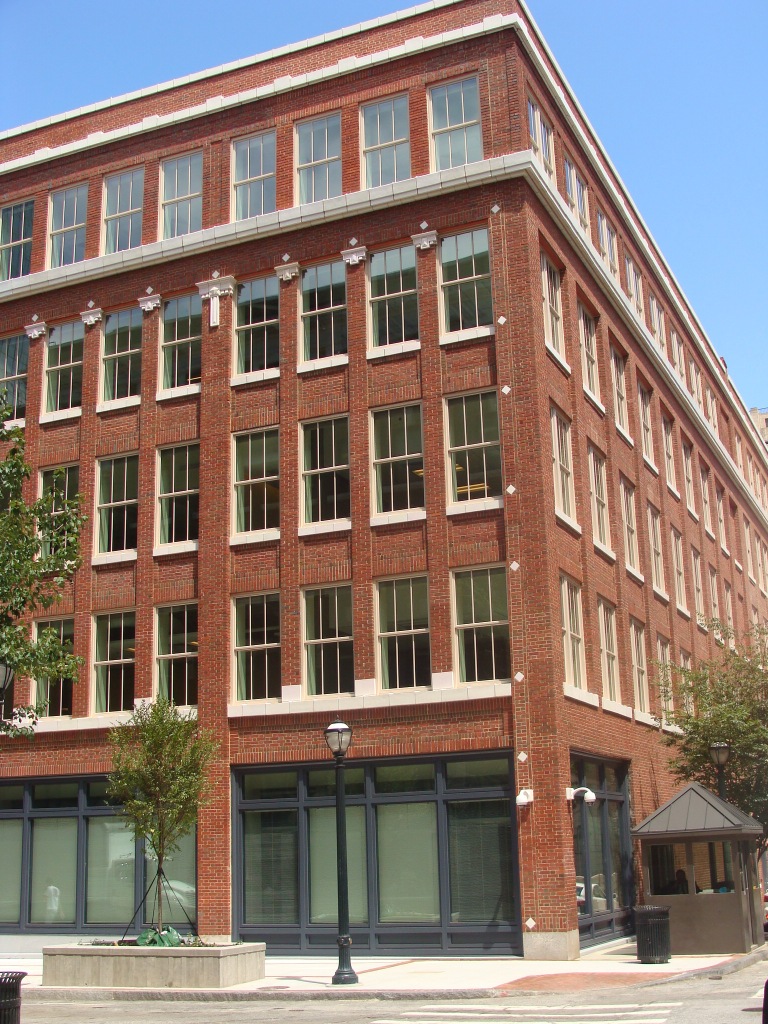

This historic window replication project involved replacing 328 original wood double-hung windows with fixed aluminum replication windows at the Tuttle Courthouse Annex in Atlanta, Georgia. Built in 1920, the five-story timber frame building was intended to be a model of successful preservation and rehabilitation. The new windows had to closely emulate the sightlines, meeting rail, muntin, and sloped putty aesthetics of the original wood double-hung windows while meeting modern thermal performance, GSA blast mitigation, and local historical requirements.
Winco provided custom versions of its 1450 Series windows, with all replacement windows made to simulate the original wood double-hung windows, including brick mold and sightlines. Exterior applied aluminum muntins simulated the original windows’ true divided lites, while a custom 4-inch-wide vertical mullion provided historical design authenticity as well as improved thermal and blast resistance characteristics. The 328 engineered units filled 207 openings and met GSA blast protection requirements and architectural replication standards.
Architect
Lord Aeck Sargent
